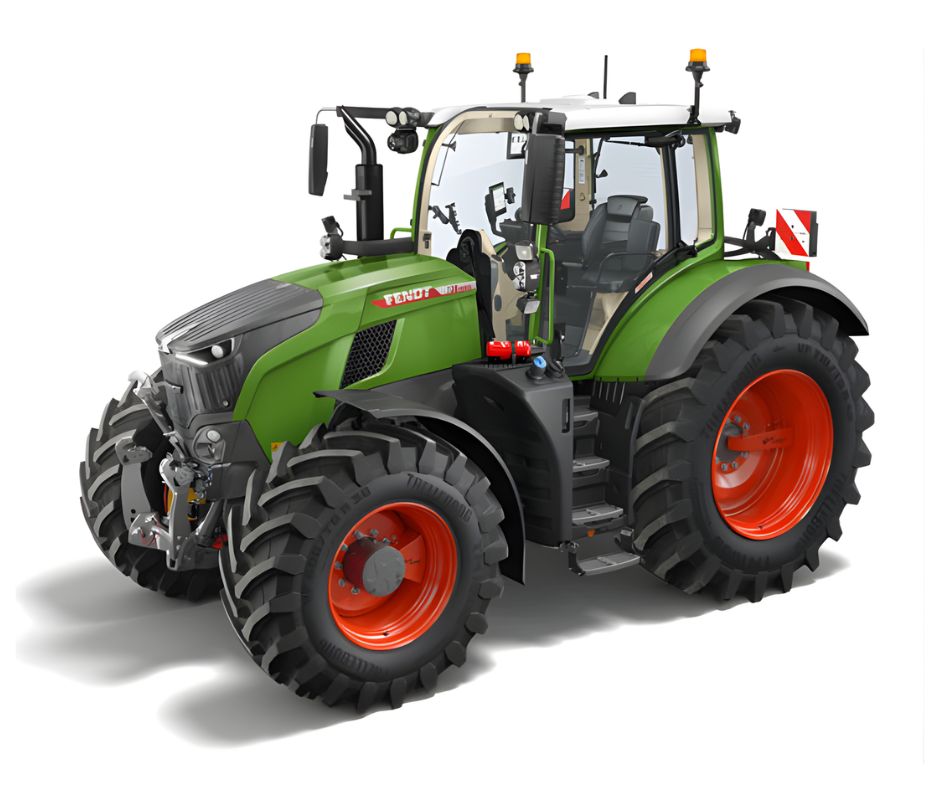

Fendt 700 Vario
Fendt 700 Vario
Just being good is not enough. The perfect coordination of the tractor and operator is what produces successful results. To make your daily work a thing of perfection, Fendt have brought together all of the best solutions in the new Fendt 700 Vario to build a perfected unit of power and manoeuvrability, precision, reliability, functionality and comfort.
Previous
Next
Fendt 700 Vario Specifications

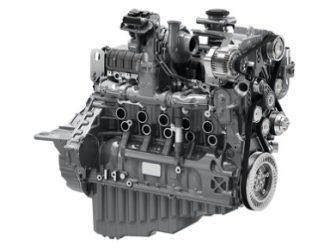

| MODEL | ENGINE | HORSEPOWER | TRANSMISSION | HYDRAULIC FLOW | MAX. TORQUE @ 1450 rpm |
|---|---|---|---|---|---|
| 714 | 6 Cylinder, Deutz | 145 | Fendt Vario ML140 | 109/152/193 L/min | 650 Nm |
| 716 | 6 Cylinder, Deutz | 165 | Fendt Vario ML140 | 109/152/193 L/min | 725 Nm |
| 718 | 6 Cylinder, Deutz | 180 | Fendt Vario ML180 | 109/152/193 L/min | 804 Nm |
| 720 | 6 Cylinder, Deutz | 200 | Fendt Vario ML180 | 109/152/193 L/min | 897 Nm |
| 722 | 6 Cylinder, Deutz | 220 | Fendt Vario ML180 | 109/152/193 L/min | 988 Nm |
| 724 | 6 Cylinder, Deutz | 240 | Fendt Vario ML180 | 109/152/193 L/min | 1058 Nm |
Contact us
Perfected For Every Operation

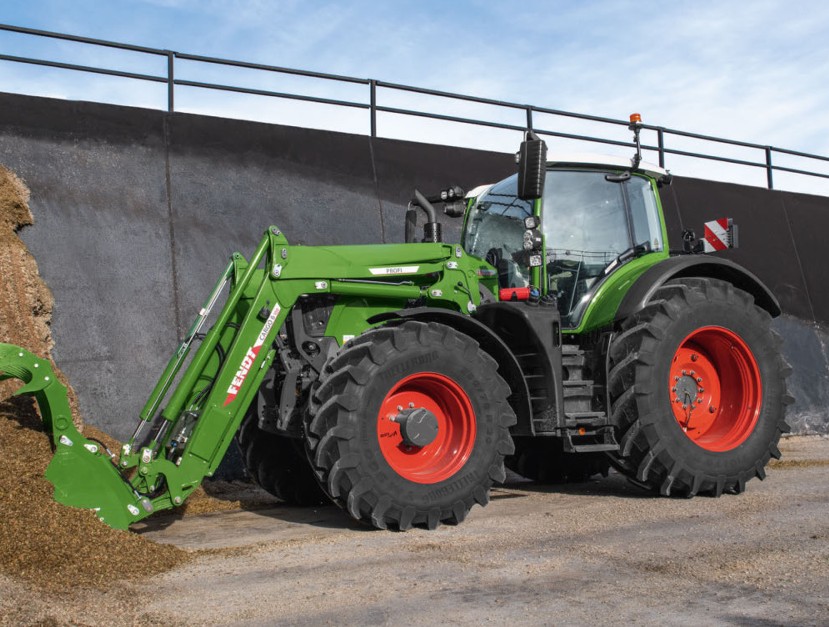

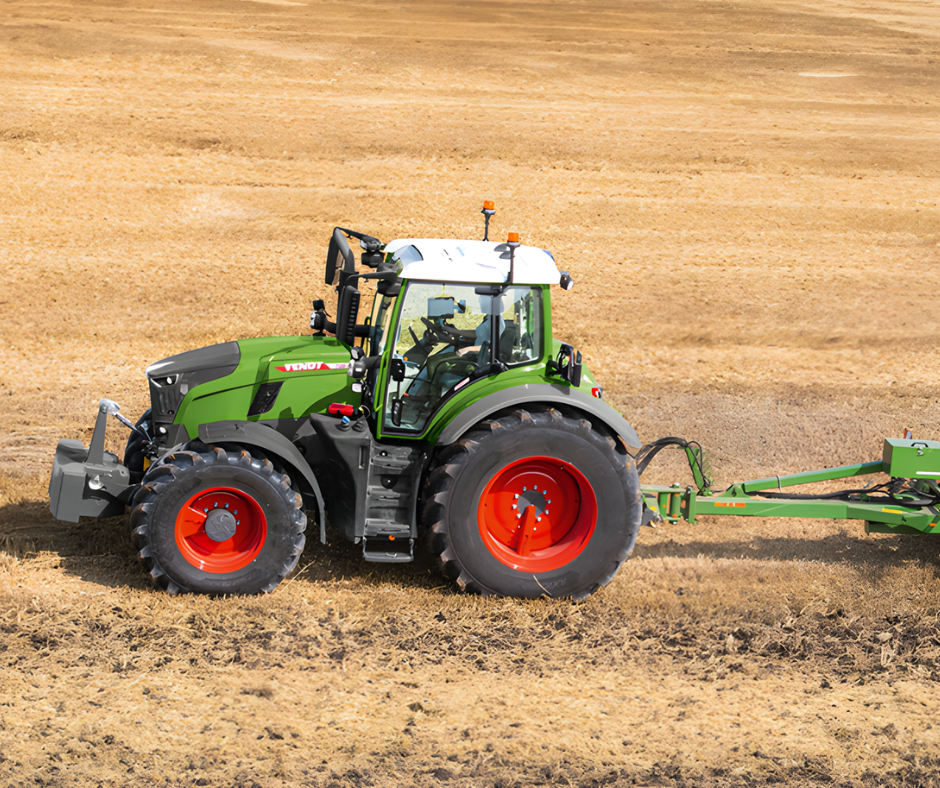

The flexible high-horsepower tractor, ranging from 145 – 240 hp, is your strong partner for all operations – from light-duty grassland operations, over dynamic transport, to heavy-duty field or fleet operations.

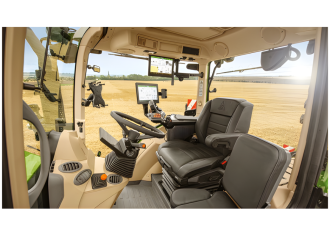

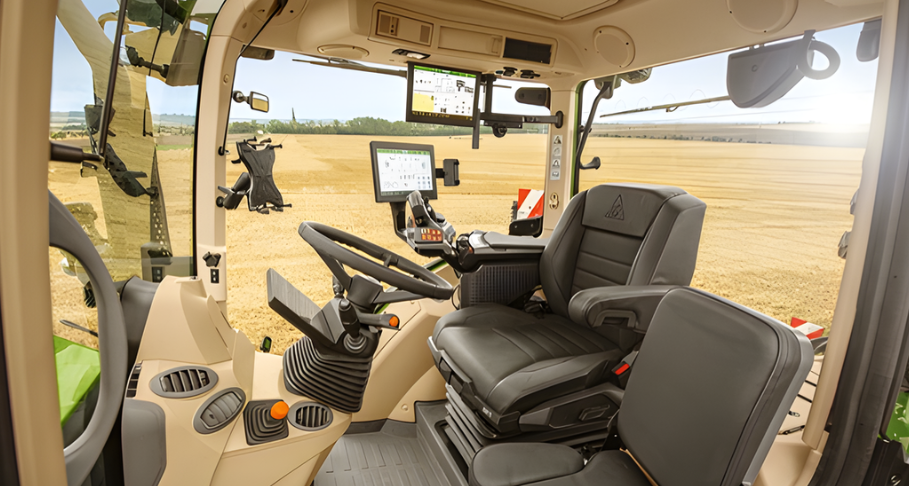

Comfotrtable entry, optimal suspension, ergonomic arrangement of operating elements, as well as more visibility and space – that is the Fendt 700 cab.
With the corner lights, you have the entire wheel arch in view, even at night.
The front axle, which has a suspension system as standard, enables high payloads along with the best ride comfort.
New Varioterminal 7-B and 10.4-B in smartphone look with touch and key control.

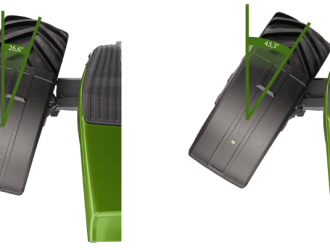

With Fendt Vario Active steering, 1 turn of the steering wheel = 43.3° steering angle.
The Tractor Management System (TMS) controls the engine & transmission so that they are always working at an economical output without you having to think about it.

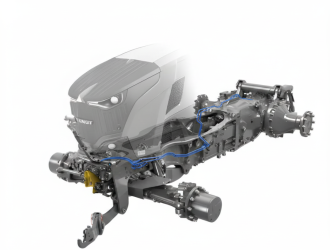

The Ingenious Fendt Vario Transmission
The separate transmission and hydraulic oil supplies permit a longer maintenance interval and dirt cannot enter the transmission.
Controls At Your Fingertips
Membrane keypad for activating TMS, speed range selection, 4WD and diff lock engagement, front axle suspension, and PTO speed selection.
Comfort at its peak
The three-point pneumatic cab suspension compensates perfectly for uneven terrain. You sit very comfortably and relaxed on the super comfort seat, suspended with compressed air from the vehicle compressor, the seat adapts itself to your weight.
Powerful hydraulics
With a delivery capacity of 193 litres per minute, the load-sensing pump on the Fendt 700 Vario provides high volume capacity for the hydraulics. Additional pumps with a delivery capacity of 152 l/min and 109 l/min (Power) perform strongly with all implements. These pump capacities permit the engine speed to be kept low, which saves fuel effectively, even during demanding operations.

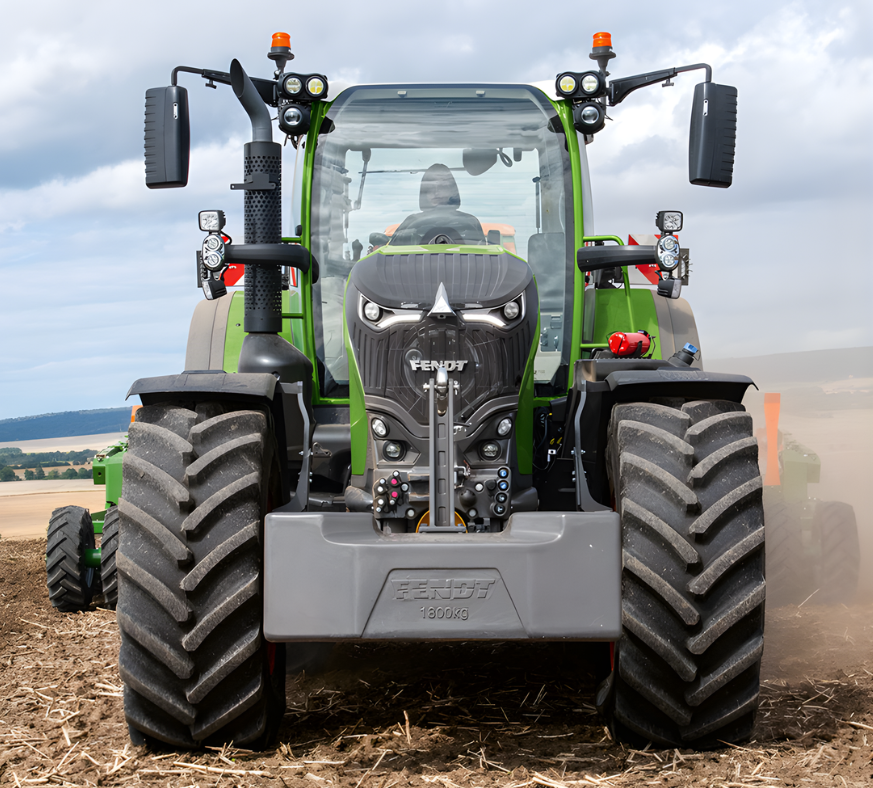

Interfaces at the front
Top link
Two double-acting control valve
Unpressurised return front
7-pin socket
Front PTO (1000 rpm)
shut-off valve
Lower link catch hook
Fold-up lower links
Electrohydraulic front linkage incl. shock load stabilising
Two double-acting control valve
Unpressurised return front
7-pin socket
Front PTO (1000 rpm)
shut-off valve
Lower link catch hook
Fold-up lower links
Electrohydraulic front linkage incl. shock load stabilising
Interfaces at the rear
ISOBUS connection
Hydraulic top link
Five double-acting control valves
Unpressurised return flow
Pressure and control line power beyond
7-pin socket
Lower link hook end
ABS socket
Rear PTO (540 / 540E /1000 / 1000E)
Hydraulic top link
Five double-acting control valves
Unpressurised return flow
Pressure and control line power beyond
7-pin socket
Lower link hook end
ABS socket
Rear PTO (540 / 540E /1000 / 1000E)
