FENDT 800 VARIO SERIES TRACTOR

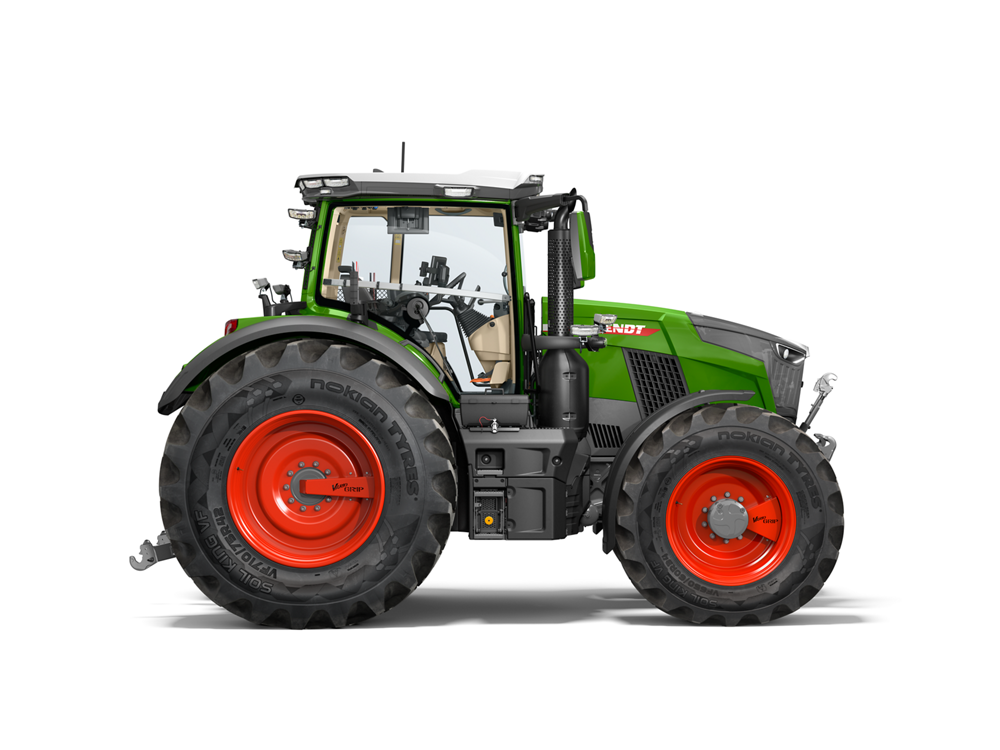

The new Fendt 800 Vario is the popular high-horsepower tractor that scores high in compactness, flexibility and performance. With up to 280 hp, they are not only powerful in the field, but also superior for transport work. It is also superior down to the last detail, with intelligent and efficiency enhancing technologies, such as the optional tyre pressure regulation system VarioGrip, automated steering and much more.
FENDT 800 VARIO SPECIFICATIONS
| MODEL | ENGINE | HORSEPOWER | TRANSMISSION | HYDRAULIC FLOW | MAX. TORQUE @ 1450 rpm |
|---|---|---|---|---|---|
| 822 | 6 Cylinder, Deutz | 220 | Fendt Vario ML220 | 152 or 205 L/min | 960 Nm |
| 824 | 6 Cylinder, Deutz | 240 | Fendt Vario ML220 | 152 or 205 L/min | 1054 Nm |
| 826 | 6 Cylinder, Deutz | 260 | Fendt Vario ML220 | 152 or 205 L/min | 1125 Nm |
| 828 | 6 Cylinder, Deutz | 280 | Fendt Vario ML220 | 152 or 205 L/min | 1217 Nm |
Contact us
Superior Innovations
The new Fendt 800 Vario offers convincing new innovations that bring efficiency and pulling power to a new level in the power range up to 280 HP. Profit from high-tech that pays off for you.

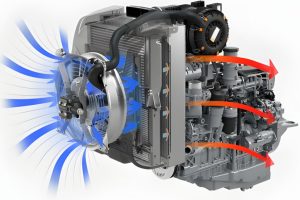

The optional reversible fan can reverse the air flow automatically so that the cooling elements are effectively cleaned by blowing them out.
The optional VarioGrip – The first factory installed tyre pressure regulation system. This allows you to work with the correct tyre pressures during all operations.

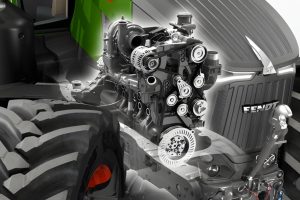

Well rounded torque curve – full torque is reached early.
The bonnet has been kept as narrow as possible, giving drivers an excellent view to wheel arches & front mounted implements.

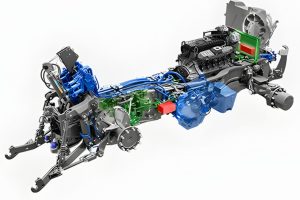

The Fendt Varip transmission is a hydro-mechanical power split drive. The hydrostats can be swung 45 degrees and have a high operating pressure – this ensures exceptional efficiency.
The Fendt 800 Vario offers you a workplace that gives you plenty of free space.
To expand the operating spectrum even further, Fendt offers a factory-installed full-function reversing driver station. It only takes a few steps to turn the driver seat around 180 degrees, including the steering wheel, multi-function armrest and all the control elements
FENDT 800 VARIO FEATURES
More space. More visibility. More ergonomics.

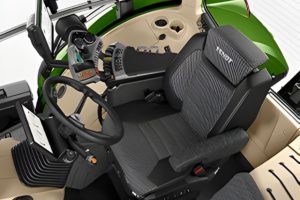

Take your place in the big Fendt 800 cab, which offers a generous amount of space and provides exceptional visibility through the large glass areas – a true panoramic view. From the driver seat, you can control all working procedures with the Variotronic and always have everything in view.
Multi-Function Joystick
4-way multi-function joystick with additional operating buttons for the 3rd and 4th auxiliary hydraulic control unit, cruise control and engine speed memory buttons as well as activation of the VariotronicTI headland management.
Driving dynamics with safety and comfort
In relation to the standard setting, with VarioActive one only needs approx. 60% fewer turns of the steering wheel for the same wheel angle. With VarioActive, you profit through the faster reaction of the steering during tight turning manoeuvres at the headlands. For reasons of safety, it can only be used from 0 – 25 km/h.
PTO Control Made Easy
The PTOs can be easily controlled via the multi-function armrest. External controls are also available at the rear. The PTO speeds (540E/1000 or 1000/1000E) at the rear enable work at a lower engine speed, which means lower fuel consumption. The front PTO (1000 rpm) permits operation with a broad range of implements at the front of the tractor.
Working Outside
With the external valve controls, you can actuate the rear linkage, one valve and the PTO directly on the rear mudguard. Using the external controls for the rear PTO, a preset engine speed can targeted automatically. You save yourself unnecessary steps, for example, when operating an auger.
Get Home Safely
The integrated coming home light permits operators to climb down from the tractor safely, even in the dark. The headlights continue to shine a while longer after the tractor is switched off. The entry steps on the Fendt 800 Vario have practical lights. They are positioned on the tank so that the steps are perfectly illuminated and drivers can climb in and out safely.
